Latest fit and filtration data for V1.0 and V2.0. Last Updated 5/24/2020

Image for post
Image for post

Fit Data

There are two ways to validate mask fit that are widely used in hospitals. The first if the Saccharin/Bitrex Test, which involves shoving your head in a bag while an unpleasant gas is released — if you can smell the gas, you fail. An alternative method is a quantitative metric called a Porta Count Pro. We use a Porta Count Pro to validate the fit of our designs.

The rating system goes from 0 to 200+, anything over 100 is a passing score for an N95 mask according to OSHA. “The test subject shall not be permitted to wear a half mask or quarter face piece respirator unless a minimum fit factor of 100 is obtained” (OSHA)

V1.0 DIY Mask Brace

Publication here: https://medrxiv.org/cgi/content/short/2020.05.18.20099325v1
https://onlinelibrary.wiley.com/doi/epdf/10.1002/emp2.12335

Performed by: University of Iowa, Carver School of Medicine
Study: Assessing fit of the surgical mask brace using the PortaCount Pro+
Status: Submitting for publication
Principal Investigator: Daniel Runde, MD, MME, Clinical Associate Professor of Emergency Medicine

Image for post
Image for post
Image for post
Image for post

V2.0 Mask Brace

Performed by: Independent Study

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

V2.0 Mask Brace + Cushions

Performed by: Independent Study

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

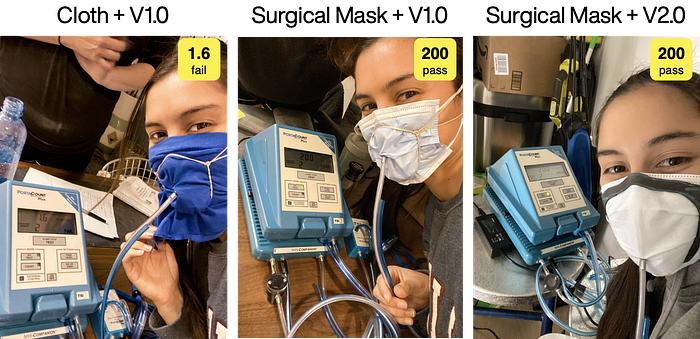

Cloth is not good enough

Image for post
Image for post

Filtration Research

  • ASTM standard for Surgical Masks, F2100, ensures surgical mask material has a particle filtration efficiency of 95% or above.
  • CDC/NIOSH 42 CFR 84, the method for testing N95s, test guarantees a filtration efficiency of 95% or above.

Research Papers

  • “one electrostatic surgical model in this study and one dust mask model tested in the previous study (Rengasamy et al. 2008) obtained from different manufacturers, showed <5% penetration level when tested similar to NIOSH respirator certification test conditions at 85 liters/minute flow rate.” (source)
  • “The number of particles penetrating through the faceseal leakage of the tested respirator/mask far exceeded the number of those penetrating through the filter medium.” (source)
  • “Most of FLTF ratios were >1, suggesting that the faceseal leakage was the primary particle penetration pathway at various breathing frequencies.” (source)
  • “suggesting that the face seal leakage was the primary particle penetration pathway for the tested FFR/SM at various breathing frequencies.” (source)
  • A filtration test was performed comparing N95s to surgical masks to sealed surgical mask on a mannequin head. The sealed surgical mask was created by taping the mask to the head. “All versions of the sealed [fitted] face mask were as effective as the N95 with insignificant differences after sealing” Skaria, S. (2014).
  • More papers

Next Steps:

  • Determine which brands of surgical masks/filtration materials pass 42 CFR part 84.
